ABS26, ABS205 SINGLE PHASE 2.0 AMP SURF ACE MOUNT BRIDGE RECTIFIERS

Description

ABS205 THRU ABS210 SINGLE PHASE 2.0 AMP SURF ACE MOUNT BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Ampere .

📥 Download Datasheet

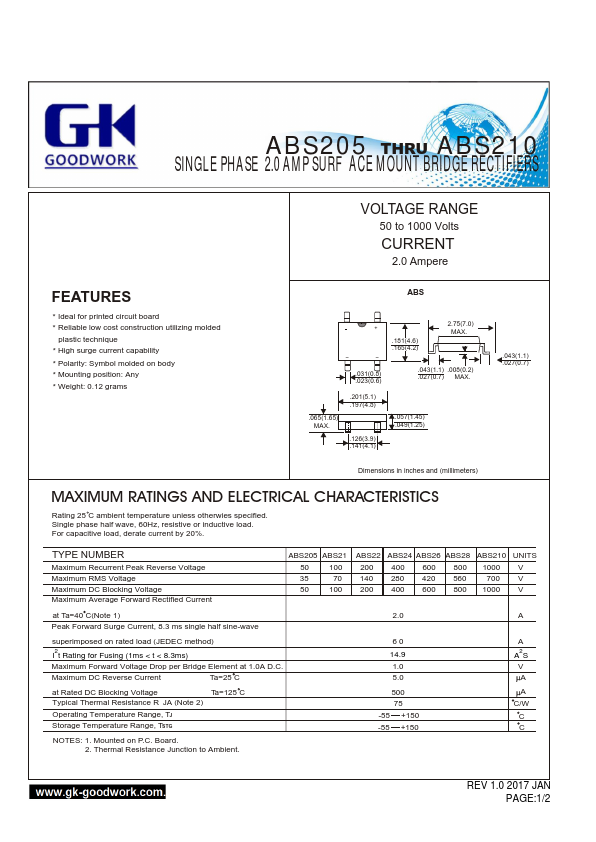

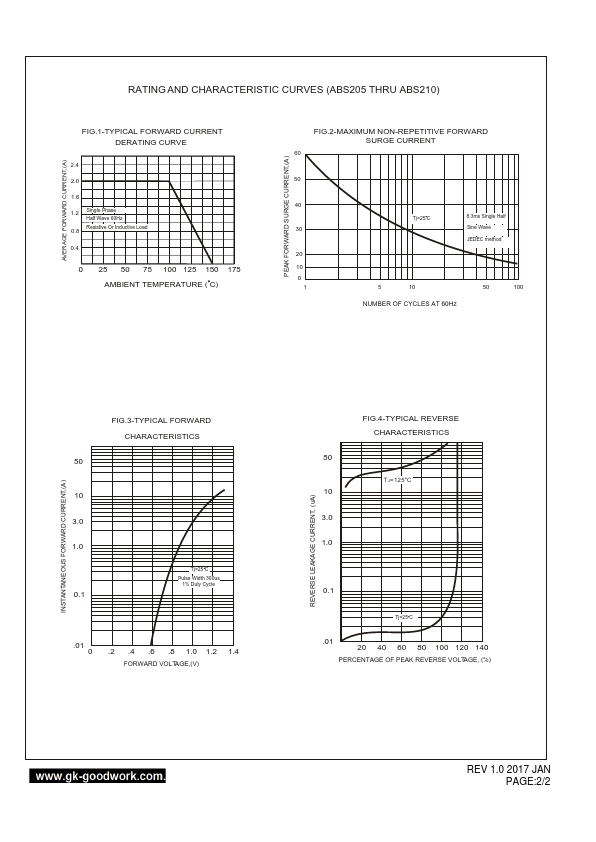

ABS26 Datasheet Preview — This datasheet PDF includes multiple part numbers: ABS26, ABS205. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ABS26, ABS205
Manufacturer: GOODWORK
File Size: 451.22 KB
Datasheet: ABS205-GOODWORK.pdf
Description: SINGLE PHASE 2.0 AMP SURF ACE MOUNT BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: ABS26, ABS205.
Please refer to the document for exact specifications by model.

Features

* Ideal for printed circuit board
* Reliable low cost construction utilizing molded plastic technique
* High surge current capability
* Polarity: Symbol molded on body
* Mounting position: Any
* Weight: 0.12 grams ABS + ~ ~ .031(0.8) .023(0.6) .181(4.6) .165(4.2) 2.75(
