MSB30D, MSB30A - 3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS

📥 Download Datasheet

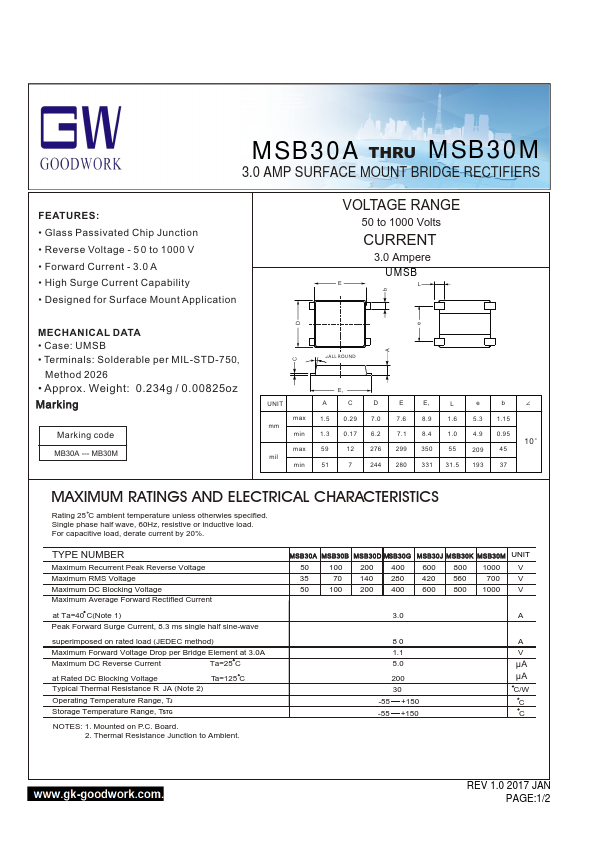

MSB30D Datasheet Preview — This datasheet PDF includes multiple part numbers: MSB30D, MSB30A. Please refer to the document for exact specifications by model.

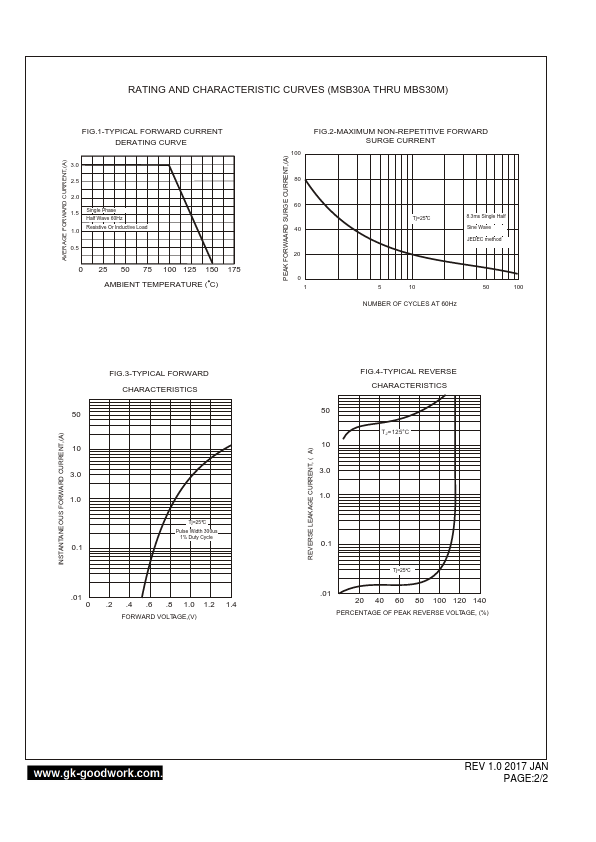

datasheet Preview Page 2

Datasheet Details

Part number	MSB30D, MSB30A
Manufacturer	GOODWORK
File Size	1.49 MB
Description	3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS
Datasheet	MSB30A-GOODWORK.pdf
Note	This datasheet PDF includes multiple part numbers: MSB30D, MSB30A. Please refer to the document for exact specifications by model.

MSB30D Product details

Features

Glass Passivated Chip Junction.
Reverse Voltage - 5 0 to 1000 V.
Forward Current - 3.0 A.
High Surge Current Capability.
Designed for Surface Mount.
