MSB30J, MSB30A 3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS

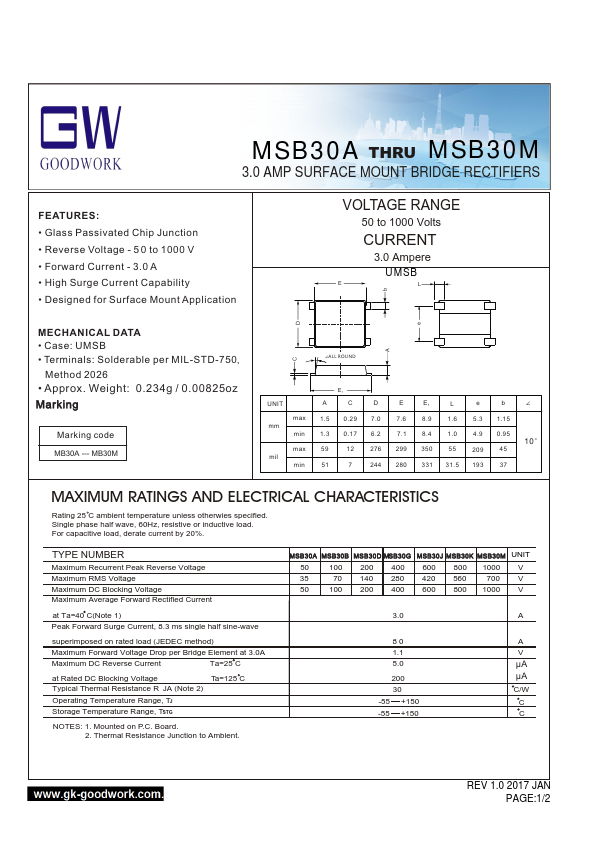

📥 Download Datasheet Datasheet Preview Page 1

Description

MSB30A THRU MSB30M 3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSB30J, MSB30A. Please refer to the document for exact specifications by model.

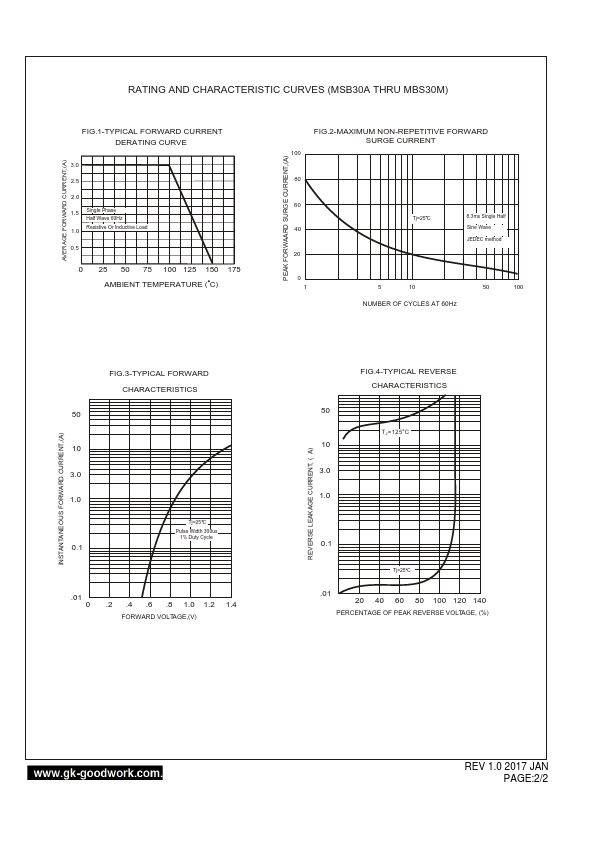

datasheet Preview Page 2

Datasheet Specifications

Part number
MSB30J, MSB30A
Manufacturer
GOODWORK
File Size
1.49 MB
Datasheet
MSB30A-GOODWORK.pdf
Description
3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MSB30J, MSB30A.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Chip Junction
* Reverse Voltage - 5 0 to 1000 V
* Forward Current - 3.0 A
* High Surge Current Capability
