EFD1202SR, EFD1202SR-GROUP Datasheet - GROUP-TEK

EFD1202SR Power Transformers

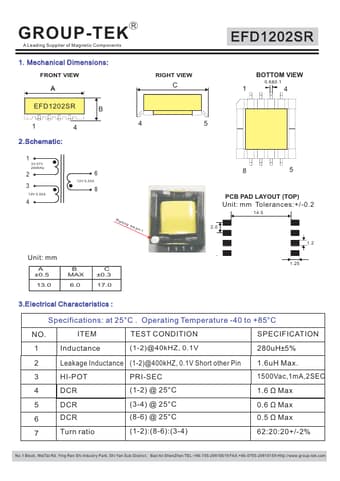

GROUP-TEK R A Leading Supplier of Magnetic Components EFD1202SR 1.Mechanical Dimensions: FRONT VIEW A RIGHT VIEW C BOTTOM VIEW 0.6±0.1 14 EFD1202SR 1 2.Schematic: 4 B 4 5 1 33-57V 200KHz 2 3 10V 0.02A 4 6 12V 0.25A 8 Marking the pin 1 Unit: mm A ±0.5 13.0 B MAX 6.0 C ±0.3 17.0 85 PCB PAD LAYOUT (TOP) Unit: mm Tolerances:+/-0.2 14.5 2.0 1.2 1.25 3.Electrical Characteristics : Specifications: at 25°С . Operating Temperature -40 to +85°С NO. ITEM TEST CONDITION SPECIFICATION .

EFD1202SR-GROUP-TEK.pdf

EFD1202SR Datasheet Preview — This datasheet PDF includes multiple part numbers: EFD1202SR, EFD1202SR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EFD1202SR, EFD1202SR-GROUP

Manufacturer:

GROUP-TEK

File Size:

29.70 KB

Description:

Power transformers.

Note:

This datasheet PDF includes multiple part numbers: EFD1202SR, EFD1202SR-GROUP.
Please refer to the document for exact specifications by model.
