EFD2007SR, EFD2007SR-GROUP Datasheet - GROUP-TEK

EFD2007SR Power Transformers

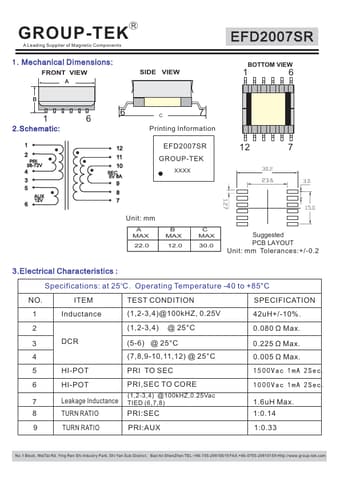

GROUP-TEK R A Leading Supplier of Magnetic Components 1.Mechanical Dimensions: FRONT VIEW SIDE VIEW EFD2007SR BOTTOM VIEW 16 1 2.Schematic: 1 2 PRI 36-72V 4 3 5 AUX 12V 6 6 6 C 7 Printing Information 12 11 10 SEC 5V 6A 9 8 7 EFD2007SR .GROUP-TEK XXXX 12 7 Unit: mm A MAX 22.0 B MAX 12.0 C MAX 30.0 Suggested PCB LAYOUT Unit: mm Tolerances:+/-0.2 3.Electrical Characteristics : Specifications: at 25 CO . Operating Temperature -40 to +85°С NO. 1 2 3 4 ITEM Inductance DCR TEST CON.

EFD2007SR-GROUP-TEK.pdf

EFD2007SR Datasheet Preview — This datasheet PDF includes multiple part numbers: EFD2007SR, EFD2007SR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EFD2007SR, EFD2007SR-GROUP

Manufacturer:

GROUP-TEK

File Size:

29.34 KB

Description:

Power transformers.

Note:

This datasheet PDF includes multiple part numbers: EFD2007SR, EFD2007SR-GROUP.
Please refer to the document for exact specifications by model.
