EFD2513 - Power over Ethernet Transformer

Datasheet Summary

Description

26.4×26.1mm Max.(L×W), 14.0mmMax.

Height.

In addition to the typical versions of parameters shown here, custom parameters are available to meet your exact requirements.

Max.

Operating frequency 500kHz,Max.

Operating Power 54.0(500kHz).

Sumida Corporation

📥 Download Datasheet

Datasheet Details

Part number	EFD2513
Manufacturer	Sumida Corporation
File Size	164.19 KB
Description	Power over Ethernet Transformer
Datasheet	EFD2513 Datasheet

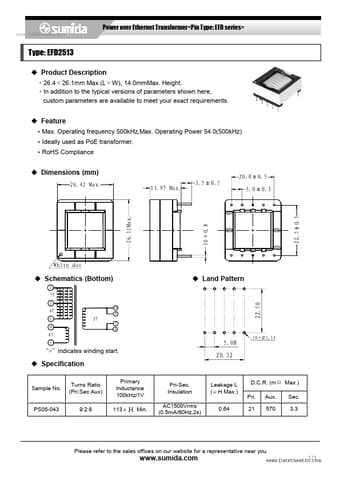

Additional preview pages of the EFD2513 datasheet.

📁 Similar Datasheet

EFD25 - POWER TRANSFORMER MODULES (FPE)
EFD25 - EFD cores and accessories (NXP)
EFD20 - POWER TRANSFORMER MODULES (FPE)
EFD2007SR - Power Transformers (GROUP-TEK)
EFD2027SR - Power Transformers (GROUP-TEK)
EFD2049R - Power Transformers (GROUP-TEK)
EFD1202SR - Power Transformers (GROUP-TEK)
EFD15 - POWER TRANSFORMER MODULES (FPE)
EFD1516SR - Power Transformers (GROUP-TEK)
EFD30 - EFD cores and accessories (NXP)

Other Datasheets by Sumida Corporation

EFD20 - General Power Transformer
EFD2013 - Power over Ethernet Transformer

Full PDF Text Transcription

Click to expand full text

Power over Ethernet Transformer www.DataSheet4U.com Type: EFD2513 ◆ Product Description 26.4×26.1mm Max.(L×W), 14.0mmMax. Height. In addition to the typical versions of parameters shown here, custom parameters are available to meet your exact requirements. ◆ Feature Max. Operating frequency 500kHz,Max. Operating Power 54.0(500kHz). Ideally used as PoE transformer. RoHS Compliance ◆ Dimensions (mm) 26.42 Max. 13.97 Max. 3.5±0.5 20.0±0.5 5.0±0.3 26.11Max. White dot ◆ Schematics (Bottom) 3 5T 4T 1 4 8T 5 2T 10 ◆ Land Pattern 9 7 6 5.08 20.32 10× 1.14 “◍”indicates winding start. ◆ Specification Turns Ratio (Pri:Sec:Aux) 9:2:8 Primary Inductance 100kHz/1V 113μＨ Min. Pri-Sec. Insulation AC1500Vrms (0.5mA/60Hz,2s) Leakage L (μH Max.) 0.64 D.C.R. (mΩ Max.) Pri.

Published: Sep 9, 2009 |
