HST-24002SAR

1000 BASE-TX MAGNETICS MODULES

HST-24002SAR Features

* Compliant with IEEE 802.3ab standard for 1000Base-T.

* Non-PoE Product.

* Support Auto MDIX in 1 pairs of category 5 UTP cable

* Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA

* Capacitance between windings (Cww)30pF Max(at 100kHz, 0.1V).

* Leakage Inductance (LL)

HST-24002SAR Datasheet (170.84 KB)

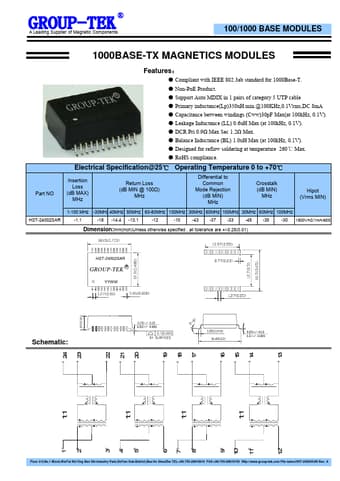

Preview of HST-24002SAR PDF

Datasheet Details

Part number:

HST-24002SAR

Manufacturer:

GROUP-TEK

File Size:

170.84 KB

Description:

1000 base-tx magnetics modules.
