HST-24030SCR, HST-24001SCR-GROUP Datasheet - GROUP-TEK

HST-24030SCR, HST-24001SCR-GROUP, 1000 BASE-TX MAGNETICS MODULES

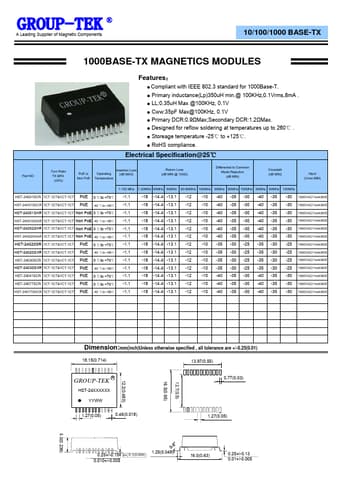

® A Leading Supplier of Magnetic Components 10/100/1000 BASE-TX 1000BASE-TX MAGNETICS MODULES .

HST-24001SCR-GROUP-TEK.pdf

HST-24030SCR Datasheet Preview — This datasheet PDF includes multiple part numbers: HST-24030SCR, HST-24001SCR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HST-24030SCR, HST-24001SCR-GROUP

Manufacturer:

GROUP-TEK

File Size:

161.00 KB

Description:

1000 BASE-TX MAGNETICS MODULES

Note:

This datasheet PDF includes multiple part numbers: HST-24030SCR, HST-24001SCR-GROUP.
Please refer to the document for exact specifications by model.

Features

* Compliant with IEEE 802.3 standard for 1000Base-T.
* Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA .
* LL:0.35uH Max @100KHz, 0.1V
* Cww:35pF Max@100KHz, 0.1V
* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
* Designed for reflow soldering at temperatures up to 260℃ .
