HST-24041SCR 1000 BASE-TX MAGNETICS MODULES

HST-24041SCR Features

* Compliant with IEEE 802.3 standard for 1000Base-T.

* Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA .

* LL:0.35uH Max @100KHz, 0.1V

* Cww:35pF Max@100KHz, 0.1V

* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.

* Designed for reflow soldering at temperatures up to 260℃ .

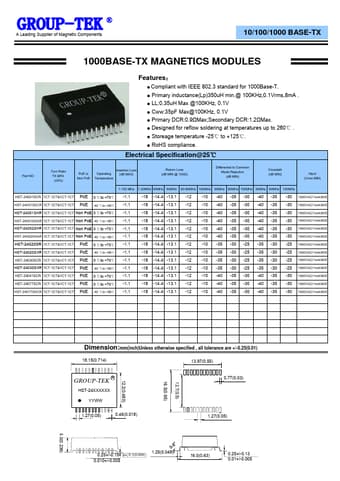

HST-24001SCR-GROUP-TEK.pdf

HST-24041SCR Datasheet Preview — This datasheet PDF includes multiple part numbers: HST-24041SCR, HST-24001SCR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HST-24041SCR, HST-24001SCR-GROUP

Manufacturer:

GROUP-TEK

File Size:

161.00 KB

Description:

1000 base-tx magnetics modules.

Note:

This datasheet PDF includes multiple part numbers: HST-24041SCR, HST-24001SCR-GROUP.
Please refer to the document for exact specifications by model.
