HST-24056SCR

1000 BASE-T TRANSFORMER

HST-24056SCR Features

* Compliant with IEEE 802.3 standard for 1000 BASE-T

* Suitable for PoE applications(350mA@48V continouos).

* Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA

* LL:0.5uH Max @100KHz, 0.1V

* Cww:30pF Max@100KHz, 0.1V

* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.

* Desi

HST-24056SCR Datasheet (139.02 KB)

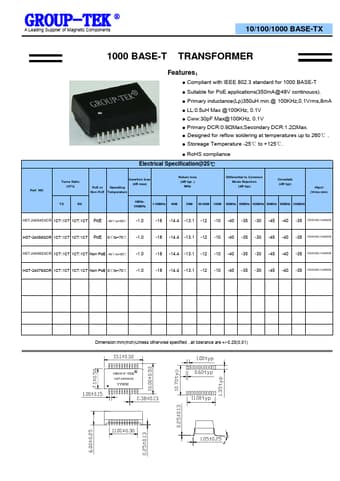

Preview of HST-24056SCR PDF

Datasheet Details

Part number:

HST-24056SCR

Manufacturer:

GROUP-TEK

File Size:

139.02 KB

Description:

1000 base-t transformer.
