GS81302D06E-400, GS81302D06E-500 Datasheet - GSI Technology

GS81302D06E-400, GS81302D06E-500, 144Mb SigmaQuad-II+ Burst of 4 SRAM

GS81302D06/11/20/38E-500/450/400/350 165-Bump BGA Commercial Temp Industrial Temp 144Mb SigmaQuad-II+ Burst of 4 SRAM 500 MHz *350 MHz 1.8 V.
Table Symbol Description Type Comments SA Synchronous Address Inputs Input. R Synchronous Read Input Active Low W Synchronous Writ.

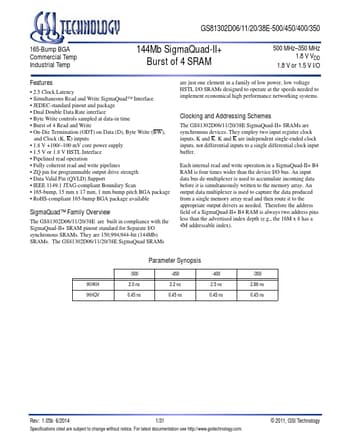

datasheet Preview Page 1 from Datasheet4u.com

GS81302D06E-500-GSITechnology.pdf

GS81302D06E-400 Datasheet Preview — This datasheet PDF includes multiple part numbers: GS81302D06E-400, GS81302D06E-500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GS81302D06E-400, GS81302D06E-500

Manufacturer:

GSI Technology

File Size:

215.89 KB

Description:

144Mb SigmaQuad-II+ Burst of 4 SRAM

Note:

This datasheet PDF includes multiple part numbers: GS81302D06E-400, GS81302D06E-500.
Please refer to the document for exact specifications by model.

Features

* 2.5 Clock Latency
* Simultaneous Read and Write SigmaQuad™ Interface
* JEDEC-standard pinout and package
* Dual Double Data Rate interface
* Byte Write controls sampled at data-in time
* Burst of 4 Read and Write
* On-Die Termination (ODT) on

Applications

* where alternating reads and writes are needed. Therefore, the SigmaQuad-II+ SRAM interface and truth table are optimized for alternating reads and writes. Separate I/O SRAMs are unpopular in applications where multiple reads or multiple writes are needed because burst read or write transfers from Se
