GS81302D06E-450

144Mb SigmaQuad-II+ Burst of 4 SRAM

GS81302D06E-450 Features

* 2.5 Clock Latency

* Simultaneous Read and Write SigmaQuad™ Interface

* JEDEC-standard pinout and package

* Dual Double Data Rate interface

* Byte Write controls sampled at data-in time

* Burst of 4 Read and Write

* On-Die Termination (ODT) on

GS81302D06E-450 General Description

Table Symbol Description Type Comments SA Synchronous Address Inputs Input

* R Synchronous Read Input Active Low W Synchronous Write Input Active Low BW0

*BW3 Synchronous Byte Writes Input Active Low x18/x36 only K Input Clock Input Active High K Input Clock Inpu.

GS81302D06E-450 Datasheet (215.89 KB)

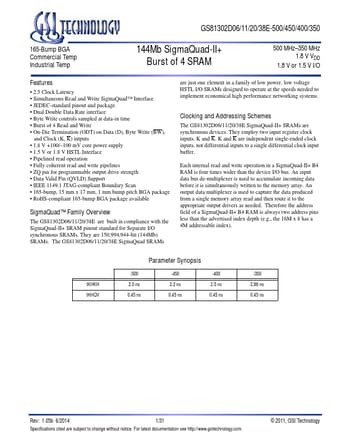

Preview of GS81302D06E-450 PDF

Datasheet Details

Part number:

GS81302D06E-450

Manufacturer:

GSI Technology

File Size:

215.89 KB

Description:

144mb sigmaquad-ii+ burst of 4 sram.
GS81302D06/11/20/38E-500/450/400/350 165-Bump BGA Commercial Temp Industrial Temp 144Mb SigmaQuad-II+ Burst of 4 SRAM 500 MHz

*350 MHz 1.8 V.
