GS81314PT18GK, GS81314PT18GK-133 Datasheet - GSI Technology

GS81314PT18GK 144Mb SigmaDDR-IVe Burst of 2 Multi-Bank ECCRAM

Symbol Description SA[21:0] DQ[35:0] DQINV[3:0] QVLD[1:0] CK, CK KD[1:0], KD[1:0] CQ[1:0], CQ[1:0] LD R/W MRW PLL RST ZQ RCS Address * Read or write address is registered on CK. Write/Read Data * Registered on KD and KD during Write operations; aligned with CQ and CQ during .

GS81314PT18GK Features

* 4Mb x 36 and 8Mb x 18 organizations available

* Organized as 16 logical memory banks

* 1333 MHz maximum operating frequency

* 1.333 BT/s peak transaction rate (in billions per second)

* 96 Gb/s peak data bandwidth (in x36 devices)

* Common I/O DDR Da

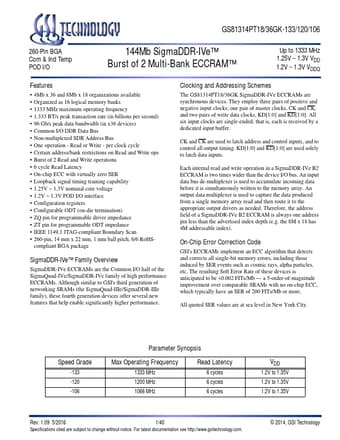

GS81314PT18GK-133-GSITechnology.pdf

GS81314PT18GK Datasheet Preview — This datasheet PDF includes multiple part numbers: GS81314PT18GK, GS81314PT18GK-133. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GS81314PT18GK, GS81314PT18GK-133

Manufacturer:

GSI Technology

File Size:

275.01 KB

Description:

144mb sigmaddr-ive burst of 2 multi-bank eccram.

Note:

This datasheet PDF includes multiple part numbers: GS81314PT18GK, GS81314PT18GK-133.
Please refer to the document for exact specifications by model.
