GS81314PD37GK 144Mb SigmaQuad-IVe Burst of 4 Single-Bank ECCRAM

Symbol Description SA[21:1] D[35:0] DINV[3:0] Q[35:0] QINV[3:0] QVLD[1:0] CK, CK KD[1:0], KD[1:0] CQ[1:0], CQ[1:0] R W MRW PLL RST Address * Read or write address is registered on CK. Write Data * Registered on KD and KD during Write operations. D[17:0] - x18 and x36. D[35:18].

GS81314PD37GK Features

* 4Mb x 36 and 8Mb x 18 organizations available

* Organized as a single logical memory bank

* 933 MHz maximum operating frequency

* 933 MT/s peak transaction rate (in millions per second)

* 134 Gb/s peak data bandwidth (in x36 devices)

* Separate I/O D

GS81314PD37GK Datasheet (263.31 KB)

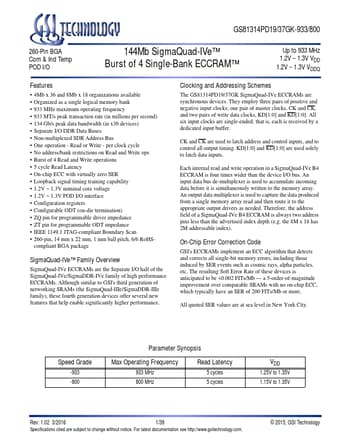

Preview of GS81314PD37GK PDF
