GS81314PQ36GK, GS81314PQ18GK-133 Datasheet - GSI Technology

GS81314PQ36GK 144Mb SigmaQuad-IVe Burst of 2 Multi-Bank ECCRAM

Symbol Description SA[21:0] D[35:0] DINV[3:0] Q[35:0] QINV[3:0] QVLD[1:0] CK, CK KD[1:0], KD[1:0] CQ[1:0], CQ[1:0] R W MRW PLL RST Address * Read address is registered on CK and write address is registered on CK. Write Data * Registered on KD and KD during Write operations. D.

GS81314PQ36GK Features

* 4Mb x 36 and 8Mb x 18 organizations available

* Organized as 16 logical memory banks

* 1333 MHz maximum operating frequency

* 2.666 BT/s peak transaction rate (in billions per second)

* 192 Gb/s peak data bandwidth (in x36 devices)

* Separate I/O DDR

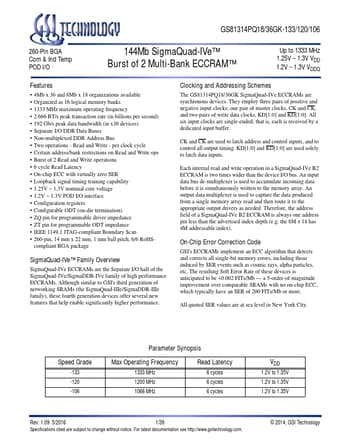

GS81314PQ18GK-133-GSITechnology.pdf

GS81314PQ36GK Datasheet Preview — This datasheet PDF includes multiple part numbers: GS81314PQ36GK, GS81314PQ18GK-133. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GS81314PQ36GK, GS81314PQ18GK-133

Manufacturer:

GSI Technology

File Size:

265.25 KB

Description:

144mb sigmaquad-ive burst of 2 multi-bank eccram.

Note:

This datasheet PDF includes multiple part numbers: GS81314PQ36GK, GS81314PQ18GK-133.
Please refer to the document for exact specifications by model.
