GS82582QT38GE, GS82582QT20GE - 288Mb SigmaQuad-II+ SRAM

GSI Technology

📥 Download Datasheet

GS82582QT38GE Datasheet Preview — This datasheet PDF includes multiple part numbers: GS82582QT38GE, GS82582QT20GE. Please refer to the document for exact specifications by model.

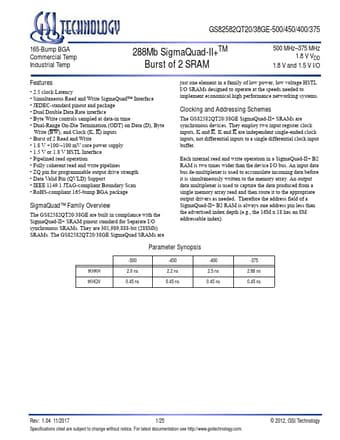

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GS82582QT38GE, GS82582QT20GE
Manufacturer	GSI Technology
File Size	306.53 KB
Description	288Mb SigmaQuad-II+ SRAM
Datasheet	GS82582QT20GE-GSITechnology.pdf
Note	This datasheet PDF includes multiple part numbers: GS82582QT38GE, GS82582QT20GE. Please refer to the document for exact specifications by model.

GS82582QT38GE Product details

Features

2.5 clock Latency.
Simultaneous Read and Write SigmaQuad™ Interface.
JEDEC-standard pinout and package.
Dual Double Data Rate interface.
Byte Write controls sampled at data-in time.
Dual-Range On-Die Termination (ODT) on Data (D), Byte Write (BW), and Clock (K, K) inputs.
Burst of 2 Read and Write.
1.8 V +100/.
100 mV core power supply.
1.5 V or 1.8 V HSTL Interface.
Pipelined read operation.
