GS8662DT07BGD, GS8662DT07BD-450 - 72Mb SigmaQuad-II+ Burst of 4 SRAM

GSI Technology

The GS8662DT07BGD by GSI Technology is a 72Mb SigmaQuad-II+ Burst of 4 SRAM. Below is the official datasheet preview.

📥 Download Datasheet

GS8662DT07BGD 72Mb SigmaQuad-II+ Burst of 4 SRAM by GSI Technology - Datasheet Preview — Official preview page of the **GS8662DT07BGD** 72Mb SigmaQuad-II+ Burst of 4 SRAM datasheet (GSI Technology).

Datasheet Details

Part number	GS8662DT07BGD, GS8662DT07BD-450
Manufacturer	GSI Technology
File Size	225.84 KB
Description	72Mb SigmaQuad-II+ Burst of 4 SRAM
Datasheet	GS8662DT07BD-450-GSITechnology.pdf
Note	This datasheet PDF includes multiple part numbers: GS8662DT07BGD, GS8662DT07BD-450. Please refer to the document for exact specifications by model.

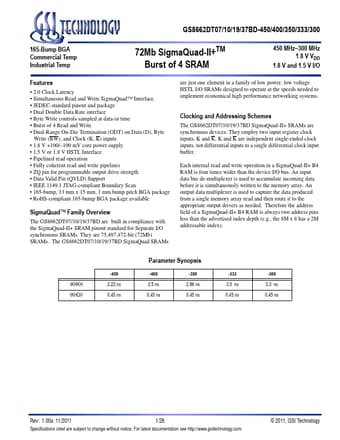

Additional preview pages of the GS8662DT07BGD datasheet.

GS8662DT07BGD Product details

Description

Table Symbol Description Type Comments SA Synchronous Address Inputs Input R Synchronous Read Input Active Low W Synchronous Write Input Active Low BW0 BW3 Synchronous Byte Writes Input Active Low NW0 NW1 Synchronous Nybble Writes Input Active Low (x8 only) K Input Clock Input Active High K Input Clock Input Active Low TMS Test Mode Select Input TDI Test Data Input Input TCK Test Clock Input Input TDO Tes

Features

2.0 Clock Latency.
Simultaneous Read and Write SigmaQuad™ Interface.
JEDEC-standard pinout and package.
Dual Double Data Rate interface.
Byte Write controls sampled at data-in time.
Burst of 4 Read and Write.
Dual-Range On-Die Termination (ODT) on Data (D), Byte Write (BW), and Clock (K, K) inputs.
1.8 V +100/.
100 mV core power supply.
1.5 V or 1.8 V HSTL Interface.
Pipelined read operation.
