GS8662DT38BD

72Mb SigmaQuad-II+ Burst of 4 SRAM

GS8662DT38BD Features

* 2.5 Clock Latency

* Simultaneous Read and Write SigmaQuad™ Interface

* JEDEC-standard pinout and package

* Dual Double Data Rate interface

* Byte Write controls sampled at data-in time

* Burst of 4 Read and Write

* Dual-Range On-Die Terminati

GS8662DT38BD General Description

Table Symbol Description Type Comments SA Synchronous Address Inputs Input

* R Synchronous Read Input Active Low W Synchronous Write Input Active Low BW0

*BW3 Synchronous Byte Writes Input Active Low NW0

*NW1 Synchronous Nybble Writes Input Active Low (x8 onl.

GS8662DT38BD Datasheet (246.23 KB)

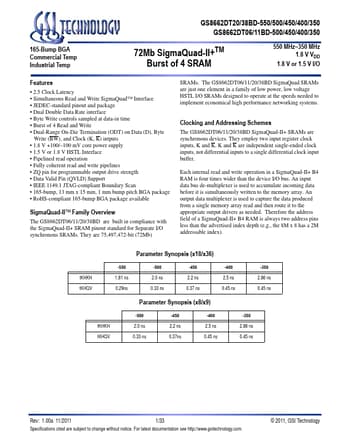

Preview of GS8662DT38BD PDF

Datasheet Details

Part number:

GS8662DT38BD

Manufacturer:

GSI Technology

File Size:

246.23 KB

Description:

72mb sigmaquad-ii+ burst of 4 sram.
165-Bump BGA Commercial Temp Industrial Temp GS8662DT20/38BD-550/500/450/400/350 GS8662DT06/11BD-500/450/400/350 72Mb SigmaQuad-II+TM Burst of 4 SRA.
