GS8662Q09E-200

72Mb SigmaQuad-II Burst

GS8662Q09E-200 Features

* Simultaneous Read and Write SigmaQuad™ Interface

* JEDEC-standard pinout and package

* Dual Double Data Rate interface

* Byte Write controls sampled at data-in time

* Burst of 2 Read and Write

* 1.8 V +100/

* 100 mV core power supply

GS8662Q09E-200 General Description

Table Symbol SA NC R W BW BW0

*BW3 NW0

*NW1 K K C C TMS TDI TCK TDO VREF ZQ Qn Dn Doff CQ CQ VDD VDDQ VSS Note: NC = Not Connected to die or any other pin Description Synchronous Address Inputs No Connect Synchronous Read Synchronous Write Synchronous Byte Write Synchronous Byte Write.

GS8662Q09E-200 Datasheet (2.07 MB)

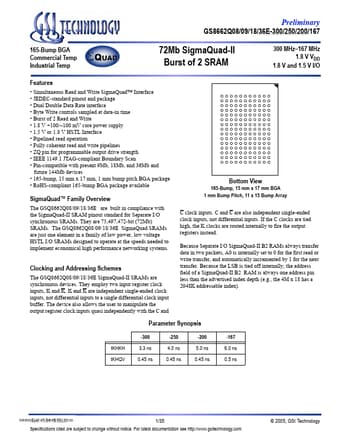

Preview of GS8662Q09E-200 PDF

Datasheet Details

Part number:

GS8662Q09E-200

Manufacturer:

GSI Technology

File Size:

2.07 MB

Description:

72mb sigmaquad-ii burst.
