GEMBR2100T - Schottky Barrier Rectifiers

Product Overview

GTM CORPORATION

Part number	GEMBR2100T
Manufacturer	GTM CORPORATION
File Size	317.93 KB
Description	Schottky Barrier Rectifiers
Datasheet	GEMBR2100T Datasheet

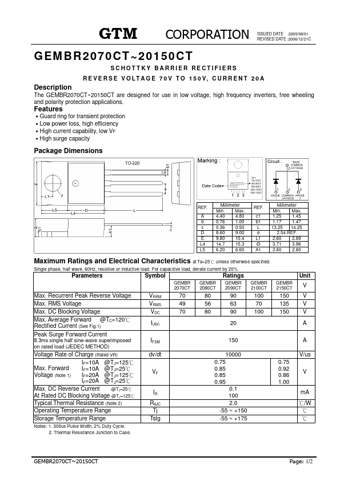

Additional preview pages of the GEMBR2100T datasheet.

Guard ring for transient protection Low power loss, high efficiency High current capability, low VF High surge capacity Package Dimensions REF. A b c D E L4 L5 Millimeter Min. Max. 4.40 4.80 0.76 1.00 0.36 0.50 8.60 9.00 9.80 10.4 14.7 15.3 6.20 6.60 REF. c1 b1 L e L1 Ø A1 Millimeter Min. Max. 1.25 1.45 1.17 1.47 13.25 14.25 2.54 REF. 2.60 2.89 3.71 3.96 2.60 2.80 Maximum Ratings and Electrical Characteristics at Ta=25 Parameters Max. Recurrent Peak Reverse Voltage Max. RMS Voltage Max. D.
