G400SD - SCHOTTKY BARRIER DIODE

Product Overview

📥 Download Datasheet

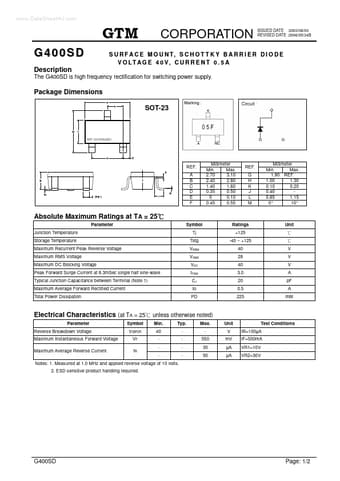

Datasheet preview – G400SD

Datasheet Details

Part number G400SD
Manufacturer GTM
File Size 210.64 KB
Description SCHOTTKY BARRIER DIODE
Datasheet download datasheet G400SD Datasheet
Additional preview pages of the G400SD datasheet.

Product details

Description

Package Dimensions SOT-23 ISSUED DATE :2003/06/03 REVISED DATE :2006/05/24B S U R F A C E M O U N T, S C H O T T K Y B A R R I E R D I O D E V O LT A G E 4 0 V, C U R R E N T 0 .5 A The G400SD is high frequency rectification for switching power supply.REF.A B C D E F Millimeter Min.Max.2.70 3.10 2.40 2.80 1.40 1.60 0.35 0.50 0 0.10 0.45 0.55 REF.G H K J L M Millimeter Min.Max.1.90 REF.1.00 1.30 0.10 0.20 0.40 0.85 1.15 0° 10° Absolute Maximum Ratings at TA = 25 Parameter Junctio
