G4010L Datasheet - Mechatronics

G4010L DC AXIAL FANS

DC AXIAL FANS G4010 series STATIC PRESSURE - MM OF WATER 1.57 ±0.02 (40 ±0.5) 1.26 ±0.01 (32 ±0.3) 0.41 ±0.02 (10.3 ±0.5) 12 10 8 6 4 2 S L M H E (40 x 40 x 10.3 mm) 1.57 x 1.57 x 0.41 inches 4x Ø0.17 ±0.01 (4x Ø4.25 ±0.3) AIR FLOW 0 0.1 0.2 0.3 0.4 AIR FLOW (M3/MIN) Construction: UL94V-0 PBT impeller & frame Bearing option: ball bearing Connection: AWG 26, UL1061 lead wires Frame: ribbed Protection: thermal Options: tachometer output or locked rotor alarm signal Model No. G4.

G4010L Datasheet (211.62 KB)

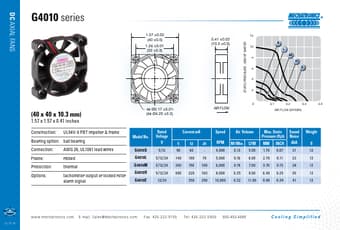

Preview of G4010L PDF

Datasheet Details

Part number:

G4010L

Manufacturer:

Mechatronics

File Size:

211.62 KB

Description:

Dc axial fans.
