G5E1118

1A Positive Low Dropout Fixed-mode Regulator

G5E1118 Features

* 1.4V maximum dropout voltage at full load current Built-in thermal shutdown Output current limiting Fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, 9.0V, 12V Fast transient response Good noise rejection Enable function Applications PC peripheral Communication CDROM.. Package Dimensions REF. A

G5E1118 General Description

The G5E1118 is a low dropout positive fixed-mode regulator with minimum of 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. G5E1118 is also well su.

G5E1118 Datasheet (259.44 KB)

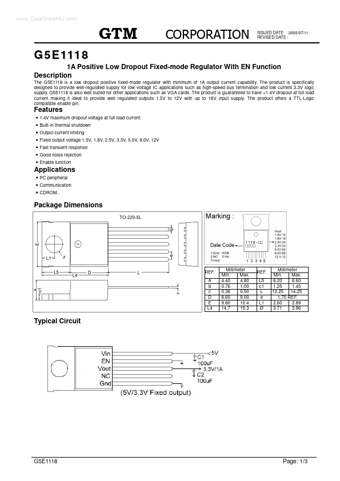

Preview of G5E1118 PDF

Datasheet Details

Part number:

G5E1118

Manufacturer:

GTM

File Size:

259.44 KB

Description:

1a positive low dropout fixed-mode regulator.
