G5E2596M

3A PWM Step-Down DC/DC Converter

G5E2596M Features

* Applications 3.3V, 5.0V, 12V and adjustable output versions Guaranteed 3A output current Operating voltage can be up to 22V 150kHz fixed frequency internal oscillator Built-in TTL On/Off control TTL Shutdown Capability Uses readily available standard inductors Thermal shutdown and current limit pr

G5E2596M General Description

The G5E2596M series of regulators are monolithic integrated circuit that provides all active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3v, 5v, 12v and an adjustab.

G5E2596M Datasheet (644.76 KB)

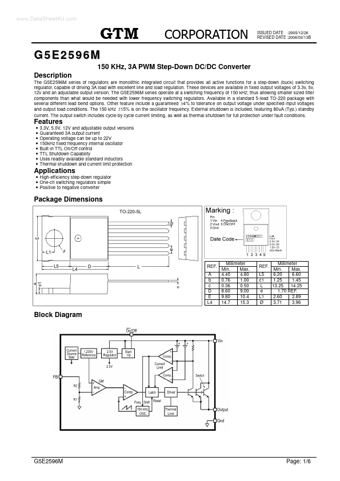

Preview of G5E2596M PDF

Datasheet Details

Part number:

G5E2596M

Manufacturer:

GTM

File Size:

644.76 KB

Description:

3a pwm step-down dc/dc converter.
