G5E1286

1.5A Ultra Low Dropout Positive Adjustable or Fixed-mode Regulator

G5E1286 Features

* Package Dimensions 0.5V maximum dropout voltage at 1.5A load current Built-in thermal shutdown Output current limiting Adjustable or fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 5.0V Fast transient response Good noise rejection REF. A b c D E L4 Millimeter Min. Max. 4.40 4.80 0.76 1.00 0.36 0.50

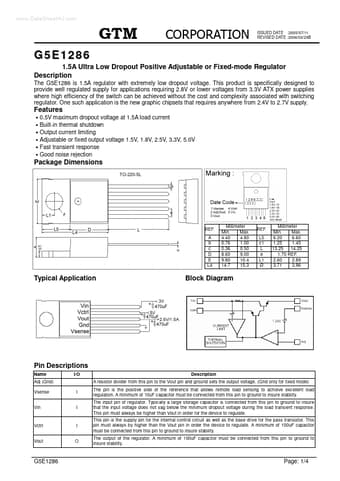

G5E1286 Datasheet (292.38 KB)

Preview of G5E1286 PDF

Datasheet Details

Part number:

G5E1286

Manufacturer:

GTM

File Size:

292.38 KB

Description:

1.5a ultra low dropout positive adjustable or fixed-mode regulator.
www.DataSheet4U.com ISSUED DATE :2005/07/11 REVISED DATE :2006/03/29B G5E1286 The G5E1286 is 1.5A regulator with extremely low dropout voltage. This .
