GJ1202 - PNP EPITAXIAL PLANAR SILICON TRANSISTOR

Product Overview

GTM

📥 Download Datasheet

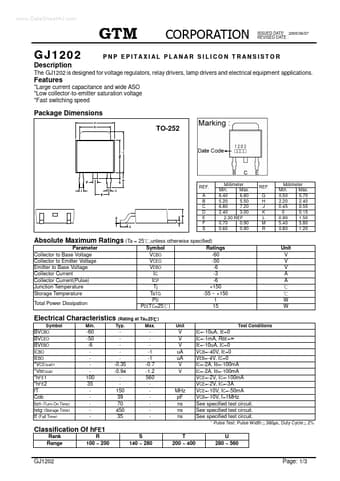

GJ1202 PNP EPITAXIAL PLANAR SILICON TRANSISTOR by GTM - Datasheet Preview — Datasheet preview – GJ1202

Datasheet Details

Part number	GJ1202
Manufacturer	GTM
File Size	391.37 KB
Description	PNP EPITAXIAL PLANAR SILICON TRANSISTOR
Datasheet	GJ1202 Datasheet
Additional preview pages of the GJ1202 datasheet.

Product details

Description

The GJ1202 is designed for voltage regulators, relay drivers, lamp drivers and electrical equipment applications.

Features

Large current capacitance and wide ASO.
Low collector-to-emitter saturation voltage.
Fast switching speed Package Dimensions TO-252 REF. A B C D E F S Millimeter Min. Max. 6.40 6.80 5.20 5.50 6.80 7.20 2.40 3.00 2.30 REF. 0.70 0.90 0.60 0.90 REF. G H J K L M R Millimeter Min. Max. 0.50 0.70 2.20 2.40 0.45 0.55 0 0.15 0.90 1.50 5.40 5.80 0.80 1.20 Absolute Maximum Ratings (Ta = 25к,unless otherwise specified) Parameter Symbol Ratings Unit Collec.
