GS400SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Datasheet Summary

Description

S U R F A C E M O U N T, S C H O T T K Y B A R R I E R D I O D E V O LT A G E 4 0 V, C U R R E N T 0 .

The GS400SD is high frequency rectification for switching power supply.

REF.

📥 Download Datasheet

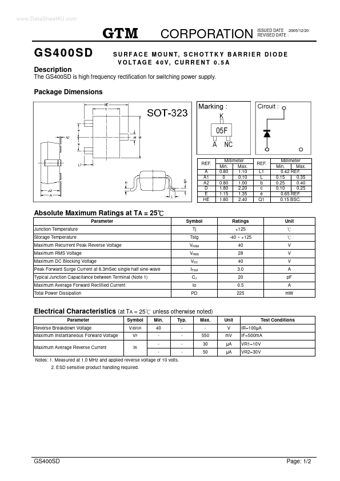

Datasheet preview – GS400SD

Datasheet Details

Part number GS400SD
Manufacturer GTM
File Size 174.57 KB
Description SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet download datasheet GS400SD Datasheet
Additional preview pages of the GS400SD datasheet.

📁 Similar Datasheet

  • GS41-102M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-141N - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-152M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-181N - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-201M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-251M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-301M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-401M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-471M - AXIAL LEADED GLASS TUBE (SunMate)
  • GS41-501M - AXIAL LEADED GLASS TUBE (SunMate)
Other Datasheets by GTM
  • GS401SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • GS402SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • GS411SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • GS420SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • GS421SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com CORPORATION GS400SD Description Package Dimensions ISSUED DATE :2005/12/20 REVISED DATE : S U R F A C E M O U N T, S C H O T T K Y B A R R I E R D I O D E V O LT A G E 4 0 V, C U R R E N T 0 . 5 A The GS400SD is high frequency rectification for switching power supply. REF. A A1 A2 D E HE Millimeter Min. Max. 0.80 1.10 0 0.10 0.80 1.00 1.80 2.20 1.15 1.35 1.80 2.40 REF. L1 L b c e Q1 Millimeter Min. Max. 0.42 REF. 0.15 0.35 0.25 0.40 0.10 0.25 0.65 REF. 0.15 BSC. Absolute Maximum Ratings at TA = 25 Parameter Junction Temperature Storage Temperature Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Peak Forward Surge Current at 8.
