GS420SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Datasheet Summary

Description

S U R F A C E M O U N T, S C H O T T K Y B A R R I E R D I O D E V O LT A G E 4 0 V, C U R R E N T 0 .

The GS420SD is designed for low power rectification.

REF.

📥 Download Datasheet

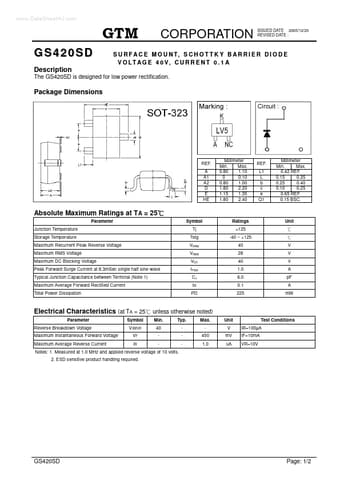

Datasheet preview – GS420SD

Datasheet Details

Part number GS420SD
Manufacturer GTM
File Size 189.86 KB
Description SURFACE MOUNT SCHOTTKY BARRIER DIODE
