GSC103 - DUAL OP-AMP

Datasheet Summary

Description

The GSC103 consists of 2 low-offset voltage amplifiers and a high-accuracy 2.5V voltage reference in SOP-8 package.

The GSC103 provides a low cost and space saving solution for the application such as power supply and switching adapters.

The GSC103 is available in a SOP-8 package.

Features

  • Precision ±0.7% Voltage Reference.
  • Vref sinking Current Capability:1mA to 100mA.
  • Low input Offset Voltage.
  • Max. 27V Voltage Rating.

📥 Download Datasheet

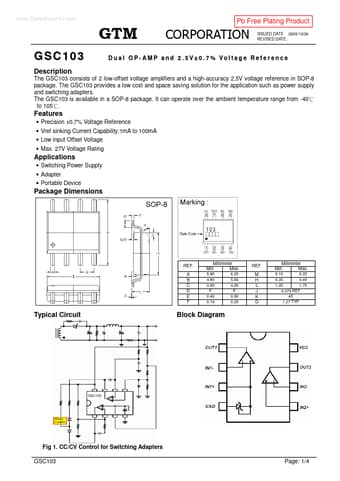

Datasheet preview – GSC103
