GSC1118 - 1A Positive Low Dropout Fixed-mode Regulator

Datasheet Summary

Description

The GSC1118 is a low dropout positive fixed-mode regulator with minimum of 1A output current capability.

The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply.

Features

  • 1.4V maximum dropout voltage at full load current.
  • Built-in thermal shutdown.
  • Output current limiting.
  • Fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, 9.0V, 12V.
  • Fast transient response.
  • Good noise rejection.
  • Enable function.

📥 Download Datasheet

Datasheet preview – GSC1118

Datasheet Details

Part number GSC1118
Manufacturer GTM
File Size 262.75 KB
Description 1A Positive Low Dropout Fixed-mode Regulator
Datasheet download datasheet GSC1118 Datasheet

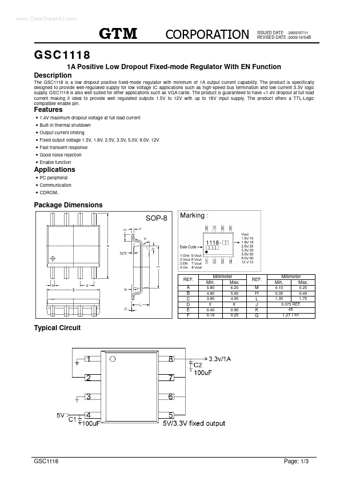

Additional preview pages of the GSC1118 datasheet.
