DBS2 Datasheet, Rectifiers, GW

DBS2 Features

  • Rectifiers   1A , 200 - 1000V   Glass passivated junction   Ideal for printed circuit board   Thin body, flat lead   High temperature soldering guaranteed: 260 ℃ /10seconds/ 0.375”(9.5mm)   Leads

PDF File Details

Part number:

DBS2

Manufacturer:

GW

File Size:

565.31kb

Download:

📄 Datasheet

Description:

Single phase 1.0 amp glass passivated bridge rectifiers.

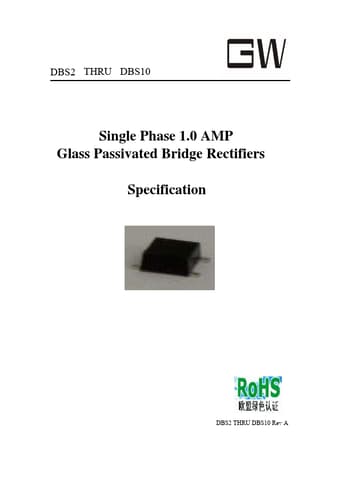

Datasheet Preview: DBS2 📥 Download PDF (565.31kb)
Page 2 of DBS2 Page 3 of DBS2

DBS2 Application

  • Applications such as,switching convertors. They have the low negative leakage and low forward voltage drop, which allows these types to be operated
