DBS10, DBS2 Datasheet - GW

DBS10 - Single Phase 1.0 AMP Glass Passivated Bridge Rectifiers

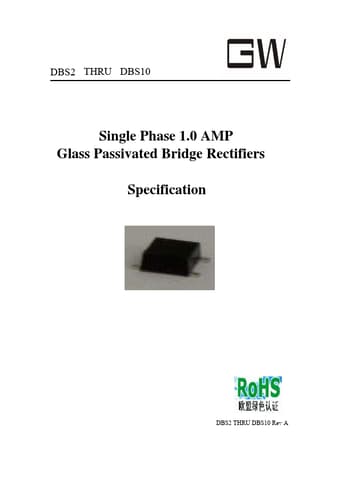

DBS2 THRU DBS10 Single Phase 1.0 AMP Glass Passivated Bridge Rectifiers Specification DBS2 THRU DBS10 Rev A DBS2 THRU DBS10 Voltage Range 200 to 1000 Volts, Current 1.0 Ampere Bridge Rectifier Datasheet These are powerful bridge rectifiers with enhanced Glass Passivated Junction P-N chips.

They are advanced rectifiers designed, tested and guaranteed to withstand a specified level of energy in the forward mode of operation.

All of these rectifiers are designed for applications such as,switchin

DBS10 Features

*   1A , 200 - 1000V   Glass passivated junction   Ideal for printed circuit board   Thin body, flat lead   High temperature soldering guaranteed: 260 ℃ /10seconds/ 0.375”(9.5mm)   Leads solderable per MIL-STD-202,Method 208   High reliability under 125℃ working environment, with the limit temperatur

DBS2-GW.pdf

This datasheet PDF includes multiple part numbers: DBS10, DBS2. Please refer to the document for exact specifications by model.
DBS10 Datasheet Preview Page 2 DBS10 Datasheet Preview Page 3

Datasheet Details

Part number:

DBS10, DBS2

Manufacturer:

GW

File Size:

565.31 KB

Description:

Single phase 1.0 amp glass passivated bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: DBS10, DBS2.
Please refer to the document for exact specifications by model.
