DBS105G, DBS101G, Glass Passivated Bridge Rectifiers

DB(S)101G - DB(S)107G Single Phase 1.0 AMP.Glass Passivated Bridge Rectifiers DB .

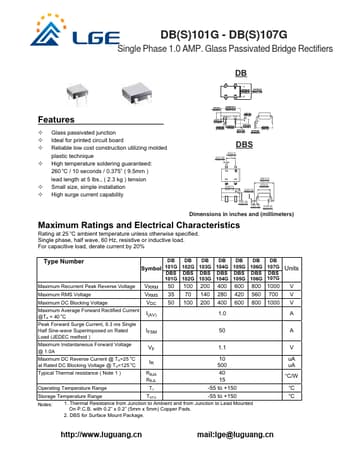

datasheet Preview Page 1 from Datasheet4u.com

DBS101G-LGE.pdf

DBS105G Datasheet Preview — This datasheet PDF includes multiple part numbers: DBS105G, DBS101G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DBS105G, DBS101G

Manufacturer:

LGE

File Size:

211.51 KB

Description:

Glass Passivated Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: DBS105G, DBS101G.
Please refer to the document for exact specifications by model.

Features

* Glass passivated junction Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation High surge current capa
