DBS101G - Glass Passivated Bridge Rectifiers

LGE

📥 Download Datasheet

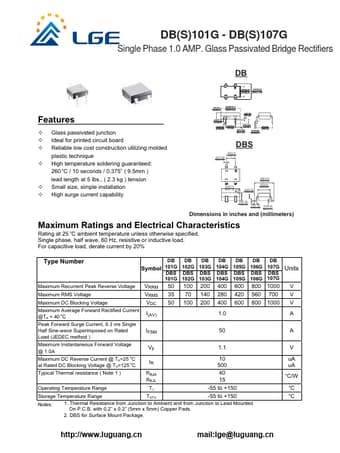

DBS101G Datasheet Preview — Preview of DBS101G PDF

datasheet Preview Page 2

Datasheet Details

Part number: DBS101G
Manufacturer: LGE
File Size: 211.51 KB
Datasheet: DBS101G-LGE.pdf
Description: Glass Passivated Bridge Rectifiers

DBS101G Product details

Features

Glass passivated junction Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation High surge current capability DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) .335(8.51) .320(8.13) 450 .013(0.33) .0088(0.22) .404(10.3) .386(9.80) .255(6.5) .245(6.2) .130(3.30) .120(3.05) .060(1.53) .040(1.02) .01.
