RS5G - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER

This page provides the datasheet information for the RS5G, a member of the RS5A 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER family.

Datasheet Summary

Features

  • Ideal for surface mount.

📥 Download Datasheet

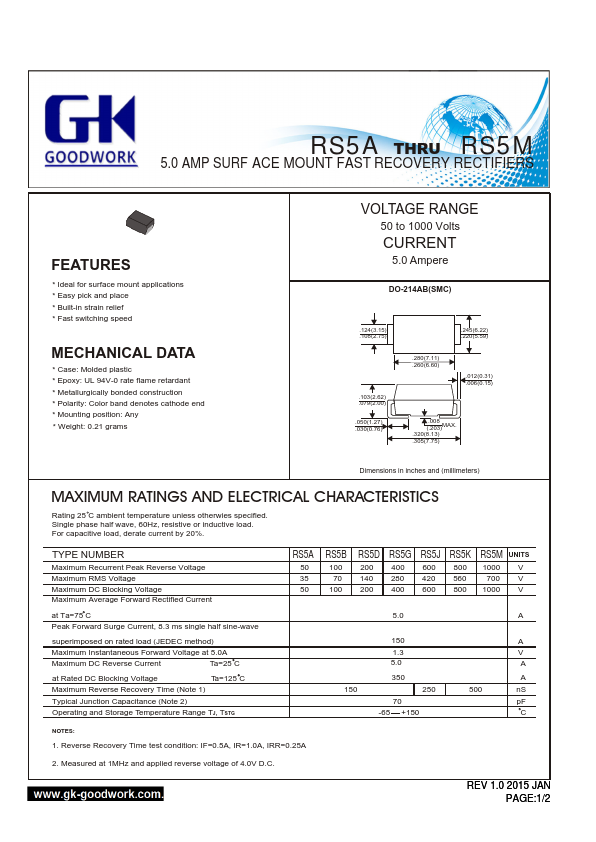

Datasheet preview – RS5G

Datasheet Details

Part number RS5G
Manufacturer GW
File Size 1.16 MB
Description 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
Datasheet download datasheet RS5G Datasheet
Additional preview pages of the RS5G datasheet.

📁 Similar Datasheet

  • RS5G - Surface Mount Rectifiers (LGE)
  • RS5G - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (SUNMATE)
  • RS5G - SURFACE MOUNT SUPER FAST RECTIFIER (Kingtronics)
  • RS5G - Fast Recovery Rectifier Diodes (MLSM)
  • RS5G - Surface Mount Fast Recovery Rectifiers (PROSEMI)
  • RS5G - SURFACE MOUNT SUPER FAST RECTIFIER (Suntan)
  • RS5GB - FAST RECOVERY RECTIFIER (JIEJIE)
  • RS5GB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • RS5GB - Surface Mount Fast Recovery Rectifiers (UNSEMI)
  • RS5GB - Ultra-Fast Recovery Rectifier Diode (Semiware)
Other Datasheets by GW
  • RS5A - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
  • RS5B - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
  • RS5D - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
  • RS5J - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
  • RS5K - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER
  • RS5M - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER

Full PDF Text Transcription

Click to expand full text
RS5A THRU RS5M 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIERS FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Fast switching speed MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.21 grams VOLTAGE RANGE 50 to 1000 Volts CURRENT 5.0 Ampere DO-214AB(SMC) .124(3.15) .108(2.75) .103(2.62) .079(2.00) .050(1.27) .030(0.76) .280(7.11) .260(6.60) .245(6.22) .220(5.59) .012(0.31) .006(0.15) .008 MAX. (.203) .320(8.13) .305(7.75) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified.
