SM4001A - 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS

SM4001A Description

SM4001A THRU SM4007A 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS .

SM4001A Applications

* Easy pick and place
* Built-in strain relief
* High surge current capability MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-202F, method 208 guranteed
* Polarity: Color band denotes cathod

📥 Download Datasheet

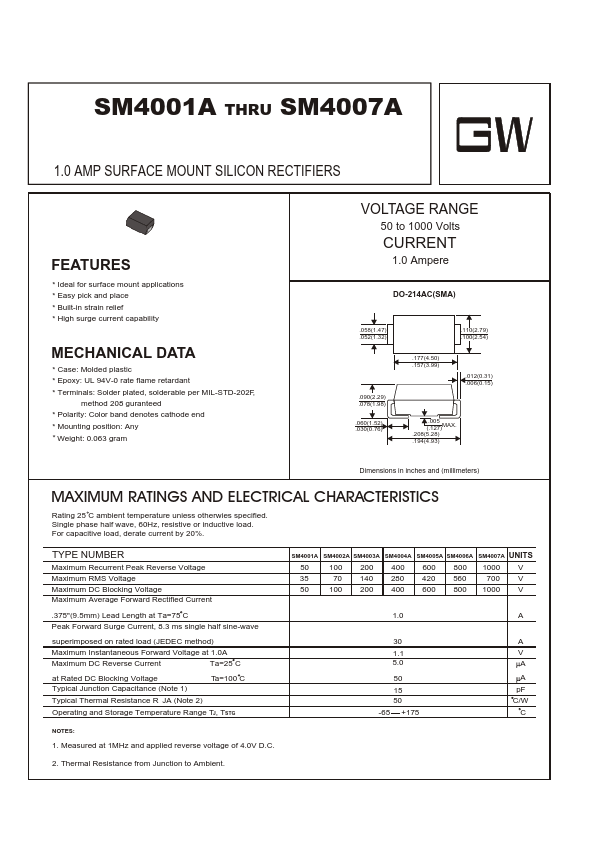

Preview of SM4001A PDF

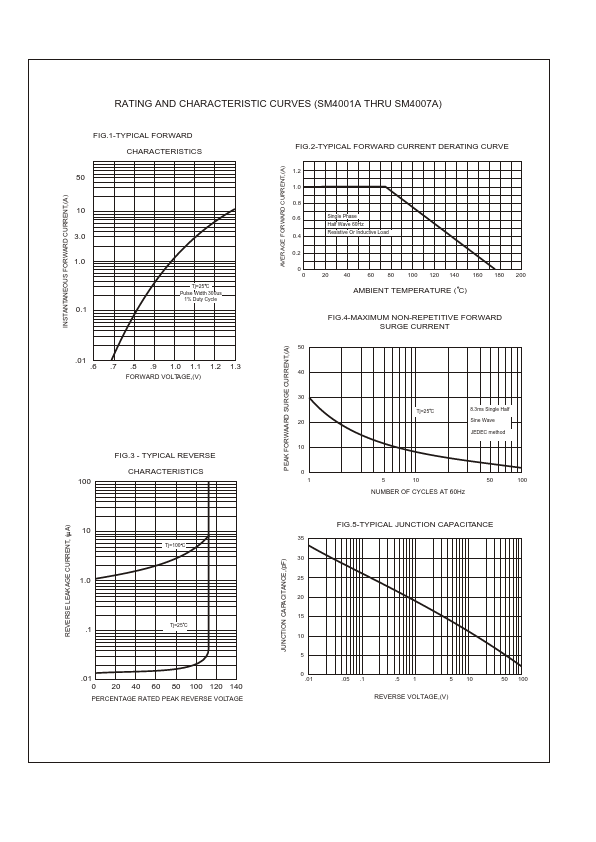

datasheet Preview Page 2

Datasheet Details

Part number
SM4001A
Manufacturer
GW
File Size
57.79 KB
Datasheet
SM4001A-GW.pdf
Description
1.0 AMP SURFACE MOUNT SILICON RECTIFIERS
