SS4001 (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS

SS4001 Description

SS4001 THRU SS4007 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT .

SS4001 Applications

* Easy pick and place
* Built-in strain relief
* High surge current capability 1.0 Ampere SS .106(2.7) .098(2.5) .051(1.3) .043(1.1) MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-202F, method

📥 Download Datasheet

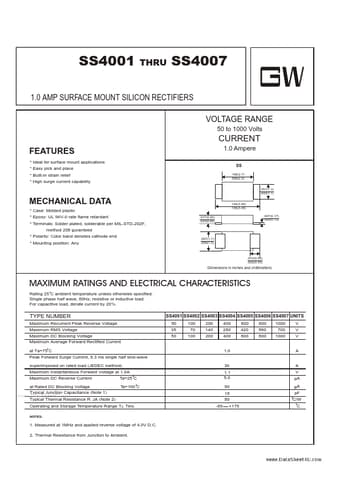

Preview of SS4001 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SS4001
Manufacturer
GW
File Size
69.20 KB
Datasheet
SS4001_GW.pdf
Description
(SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS
