SS4004, SS4001, (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS

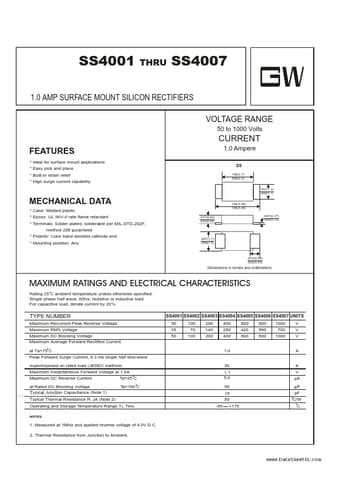

SS4001 THRU SS4007 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT .

SS4001_GW.pdf

SS4004 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS4004, SS4001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS4004, SS4001

Manufacturer:

File Size:

69.20 KB

Description:

(SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SS4004, SS4001.
Please refer to the document for exact specifications by model.

Applications

* Easy pick and place
* Built-in strain relief
* High surge current capability 1.0 Ampere SS .106(2.7) .098(2.5) .051(1.3) .043(1.1) MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-202F, method
