SS40A - CMOS Omnipolar High Sensitivity Micropower Hall Switch

Datasheet Summary

Description

The SS40A Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology.

It incorporates advanced chopper-stabilization techniques to provide accurate and stable magnetic switch points.

Features

  • 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Operation down to 2.5V Wide operating voltage range High sensitivity for direct reed switch replacement.

📥 Download Datasheet

Datasheet preview – SS40A

Datasheet Details

Part number SS40A
Manufacturer SEC
File Size 326.44 KB
Description CMOS Omnipolar High Sensitivity Micropower Hall Switch
Datasheet download datasheet SS40A Datasheet
Additional preview pages of the SS40A datasheet.

📁 Similar Datasheet

  • SS40A - Magnetic Position Sensors (Honeywell)
  • SS400 - Hall-effect Digital Position Sensor (HONEYWELL)
  • SS4000-E - Entry Storage System User Guide (Intel)
  • SS4001 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
  • SS4002 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
  • SS4003 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
  • SS4004 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
  • SS4005 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
  • SS4006 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
  • SS4007 - (SS4001 - SS4007) 1.0 AMP SURFACE MOUNT SILICON RECTIFIERS (GW)
Other Datasheets by SEC
  • SS41 - Bipolar Hall-Effect Position Sensor
  • SS41F - Hall Latch Position Sensor
  • SS41FESOT - Hall Latch Position Sensor
  • SS41FEUA - Hall Latch Position Sensor
  • SS41FKSOT - Hall Latch Position Sensor
  • SS41FKUA - Hall Latch Position Sensor
  • SS41FLSOT - Hall Latch Position Sensor
  • SS41FLUA - Hall Latch Position Sensor

Full PDF Text Transcription

Click to expand full text

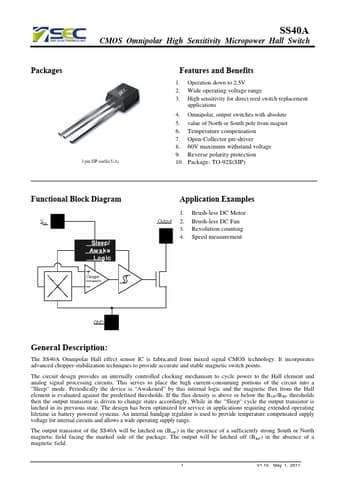

SS40A CMOS Omnipolar High Sensitivity Micropower Hall Switch Packages Features and Benefits 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Operation down to 2.5V Wide operating voltage range High sensitivity for direct reed switch replacement applications Omnipolar, output switches with absolute value of North or South pole from magnet Temperature compensation Open-Collector pre-driver 60V maximum withstand voltage Reverse polarity protection Package: TO-92S(SIP)   3 pin SIP (suffix UA) Functional Block Diagram Application Examples 1. 2. 3. 4. www.DataSheet.net/ Brush-less DC Motor Brush-less DC Fan Revolution counting Speed measurement   General Description: The SS40A Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology.
