GM317 Datasheet, Regulator, Gamma Microelectronics

GM317 Features

  • Regulator Output current up to 1.5A Output Voltages 1.2V to 37V Input Regulation typ. 0.01% per input Output Regulation typ. 0.1% Peak Output Current Constant over Temperature Range of Regulator

PDF File Details

Part number:

GM317

Manufacturer:

Gamma Microelectronics

File Size:

298.49kb

Download:

📄 Datasheet

Description:

Adjustable regulator. The GM317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range

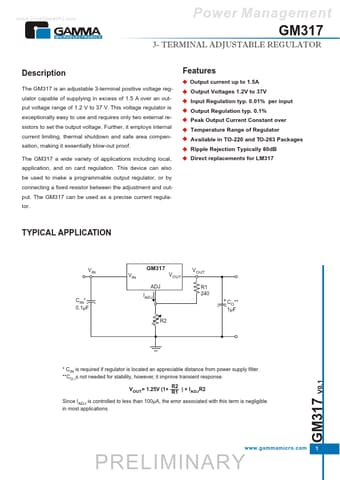

Datasheet Preview: GM317 📥 Download PDF (298.49kb)
Page 2 of GM317 Page 3 of GM317

GM317 Application

  • Applications including local, application, and on card regulation. This device can also be used to make a programmable output regulator, or by conne
