GM3008

Stand Alone Class B Hybrid

GM3008 Features

* up to 80 dB of electrical gain

* dedicated preamp for a telecoil

* direct coupling of a telecoil to preamp

* low input referred noise

* on chip voltage regulator

* capable of driving low impedance receivers DESCRIPTION The GM3008 hybrid consists of

GM3008 General Description

The GM3008 hybrid consists of two of Gennum's proprietary integrated circuits, the GP537 preamplifier and the GS551 class B output driver. Such a configuration provides up to 80 dB (typ) of electrical gain. Low total harmonic distortion and input noise make this circuit well suited for high power ap.

GM3008 Datasheet (114.30 KB)

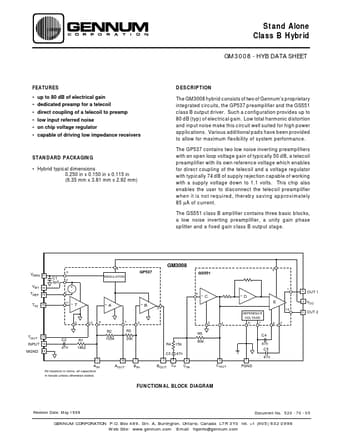

Preview of GM3008 PDF

Datasheet Details

Part number:

GM3008

Manufacturer:

Gennum Corporation

File Size:

114.30 KB

Description:

Stand alone class b hybrid.
