GM7800 - POSITIVE VOLTAGE REGULATORS

Gamma Microelectronics

📥 Download Datasheet

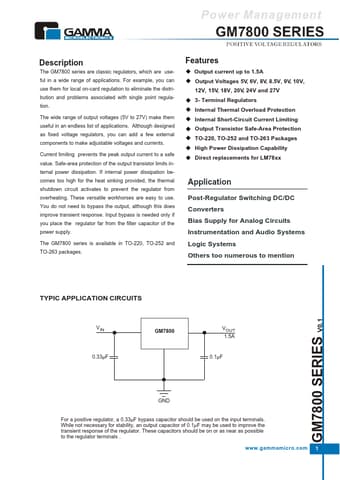

GM7800 Datasheet Preview — Preview of GM7800 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: GM7800
Manufacturer: Gamma Microelectronics
File Size: 381.24 KB
Datasheet: GM7800_GammaMicroelectronics.pdf
Description: POSITIVE VOLTAGE REGULATORS

GM7800 Product details

Description

The GM7800 series are classic regulators, which are useful in a wide range of applications..

Features

Output current up to 1.5A Output Voltages 5V, 6V, 8V, 8.5V, 9V, 10V, 12V, 15V, 18V, 20V, 24V and 27V 3- Terminal Regulators Internal Thermal Overload Protection Internal Short-Circuit Current Limiting Output Transistor Safe-Area Protection TO-220, TO-252 and TO-263 Packages High Power Dissipation Capability Direct replacements for LM78xx Application Post-Regulator Switching DC/DC Converters Bias Supply for Analog Circuits Instrumentation and Audio Systems Logic Systems Others too numerous to me.
