GM7805, GM7800 Datasheet - Gamma Microelectronics

GM7805, GM7800, POSITIVE VOLTAGE REGULATORS

www.DataSheet4U.com .
The GM7800 series are classic regulators, which are useful in a wide range of applications.

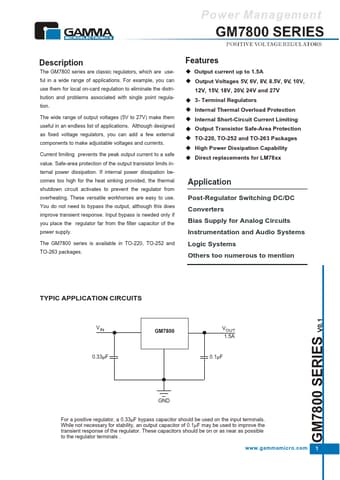

datasheet Preview Page 1 from Datasheet4u.com

GM7800_GammaMicroelectronics.pdf

GM7805 Datasheet Preview — This datasheet PDF includes multiple part numbers: GM7805, GM7800. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GM7805, GM7800

Manufacturer:

Gamma Microelectronics

File Size:

381.24 KB

Description:

POSITIVE VOLTAGE REGULATORS

Note:

This datasheet PDF includes multiple part numbers: GM7805, GM7800.
Please refer to the document for exact specifications by model.

Features

* Output current up to 1.5A Output Voltages 5V, 6V, 8V, 8.5V, 9V, 10V, 12V, 15V, 18V, 20V, 24V and 27V 3- Terminal Regulators Internal Thermal Overload Protection Internal Short-Circuit Current Limiting Output Transistor Safe-Area Protection TO-220, TO-252 and TO-263 Packages High Power Dissipation Ca

Applications

* For example, you can use them for local on-card regulation to eliminate the distribution and problems associated with single point regulation. The wide range of output voltages (5V to 27V) make them useful in an endless list of applications. Although designed as fixed voltage regulators, you can ad
