GM7812

POSITIVE VOLTAGE REGULATORS

GM7812 Features

* Output current up to 1.5A Output Voltages 5V, 6V, 8V, 8.5V, 9V, 10V, 12V, 15V, 18V, 20V, 24V and 27V 3- Terminal Regulators Internal Thermal Overload Protection Internal Short-Circuit Current Limiting Output Transistor Safe-Area Protection TO-220, TO-252 and TO-263 Packages High Power Dissipation Ca

GM7812 General Description

The GM7800 series are classic regulators, which are useful in a wide range of applications. For example, you can use them for local on-card regulation to eliminate the distribution and problems associated with single point regulation. The wide range of output voltages (5V to 27V) make them useful in.

GM7812 Datasheet (381.24 KB)

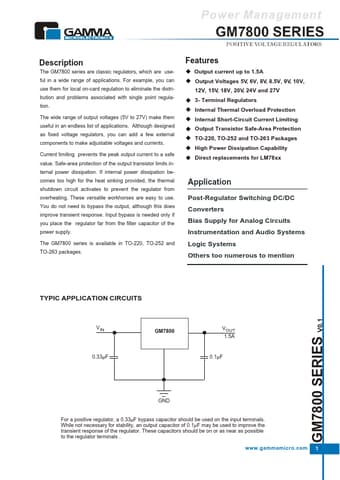

Preview of GM7812 PDF

Datasheet Details

Part number:

GM7812

Manufacturer:

Gamma Microelectronics

File Size:

381.24 KB

Description:

Positive voltage regulators.
