FST10040 - Silicon Power Schottky Diode

Product Overview

GeneSiC

Part number	FST10040
Manufacturer	GeneSiC
File Size	363.24 KB
Description	Silicon Power Schottky Diode
Datasheet	FST10040 Datasheet
Note	This datasheet PDF includes multiple part numbers: FST10040, FST10020. Please refer to the document for exact specifications by model.

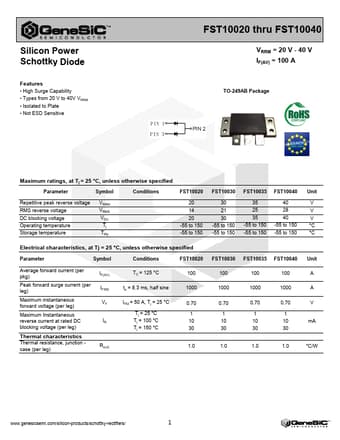

Additional preview pages of the FST10040 datasheet.

High Surge Capability.
Types from 20 V to 40V VRRM.
Isolated to Plate.
Not ESD Sensitive FST10020 thru FST10040 VRRM = 20 V - 40 V IF(AV) = 100 A TO-249AB Package Maximum ratings, at Tj = 25 °C, unless otherwise specified Parameter Symbol Conditions FST10020 Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Operating temperature Storage temperature VRRM VRMS VDC Tj Tstg 20 14 20 -55 to 150 -55 to 150 FST10030 30 21 30 -55 to 15.
