Part number: NJ8821
Manufacturer: General Electric Company
File Size: 117.52KB
Download: 📄 Datasheet
Description: FREQUENCY SYNTHESISER

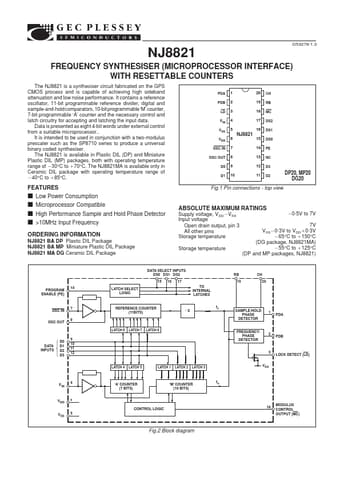

Fig.1 Pin connections - top view
s s s s
Low Power Consumption Microprocessor Compatible High Performance Sample and Hold Phase Detector >10MHz Input Frequency ABSOLUT.
Pin no. 1 Name PDA Description Analog output from the sample and hold phase comparator for use as a ‘fine’ error signal. Output at (VDD2VSS)/2 when the system is in lock. Voltage increases as fv phase lead increases; voltage decreases as fr phase le.
