1N4383GP - GLASS PASSIVATED JUNCTION RECTIFIER

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High temperature metallurgically bonded construction.
  • Glass passivated cavity-free junction.
  • Capable of meeting environmental standards of MIL-S-19500.
  • 1.0 Ampere operation at TA=100°C with no thermal runaway.
  • High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension P A T E N T E 0.300 (7.6) 0.230 (5.8) 0.14.

📥 Download Datasheet

Datasheet preview – 1N4383GP

Datasheet Details

Part number 1N4383GP
Manufacturer General Semiconductor
File Size 64.43 KB
Description GLASS PASSIVATED JUNCTION RECTIFIER
Datasheet download datasheet 1N4383GP Datasheet
Additional preview pages of the 1N4383GP datasheet.

📁 Similar Datasheet

  • 1N4383 - 1.0 AMP RECTIFIER 200 THRU 1000 VOLTS (Central Semiconductor Corp)
  • 1N4384 - 1.0 AMP RECTIFIER 200 THRU 1000 VOLTS (Central Semiconductor Corp)
  • 1N4385 - 1.0 AMP RECTIFIER 200 THRU 1000 VOLTS (Central Semiconductor Corp)
  • 1N4387 - SILICON MULTIPLIER VARACTOR DIODE (Advanced Semiconductor)
  • 1N4388 - SILICON MULTIPLIER VARACTOR DIODE (ASI)
  • 1N4388 - Silicon varactor diode (Motorola)
  • 1N43 - 1N43 1N7 SERIES ZENER DIODES (Leshan Radio Company)
  • 1N4305 - Small Signal Diode (Fairchild Semiconductor)
  • 1N4305 - SWITCHING RECTFIERS (Digitron Semiconductors)
  • 1N4361 - Silicon Rectifiers (Semitronics)
Other Datasheets by General Semiconductor
  • 1N4384GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4385GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4245GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4247GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4248GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4249GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4585GP - GLASS PASSIVATED JUNCTION RECTIFIER
  • 1N4586GP - GLASS PASSIVATED JUNCTION RECTIFIER

Full PDF Text Transcription

Click to expand full text

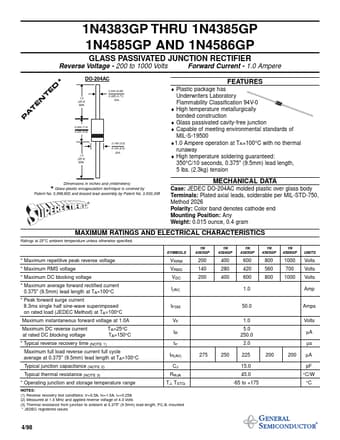

1N4383GP THRU 1N4385GP 1N4585GP AND 1N4586GP GLASS PASSIVATED JUNCTION RECTIFIER Reverse Voltage - 200 to 1000 Volts D * DO-204AC 0.034 (0.86) 1.0 (25.4) MIN. 0.028 (0.71) DIA. Forward Current - 1.0 Ampere FEATURES ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ High temperature metallurgically bonded construction ♦ Glass passivated cavity-free junction ♦ Capable of meeting environmental standards of MIL-S-19500 ♦1.0 Ampere operation at TA=100°C with no thermal runaway ♦ High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension P A T E N T E 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN.
