1N5061, 1N5059 - GLASS PASSIVATED JUNCTION RECTIFIER

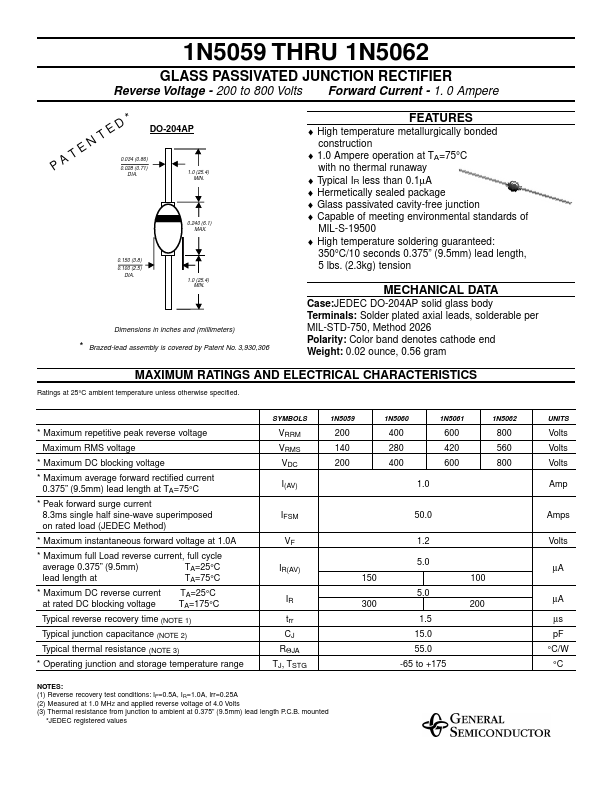

1N5061 Description

1N5059 THRU 1N5062 GLASS PASSIVATED JUNCTION RECTIFIER Reverse Voltage - 200 to 800 Volts Forward Current - 1.0 Ampere D * DO-204AP TENTE 0.034 .

1N5061 Features

* High temperature metallurgically bonded construction
* 1.0 Ampere operation at TA=75°C with no thermal runaway
* Typical IR less than 0.1µA
* Hermetically sealed package
* Glass passivated cavity-free junction
* Capable of meeting environmental stand

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5061, 1N5059. Please refer to the document for exact specifications by model.

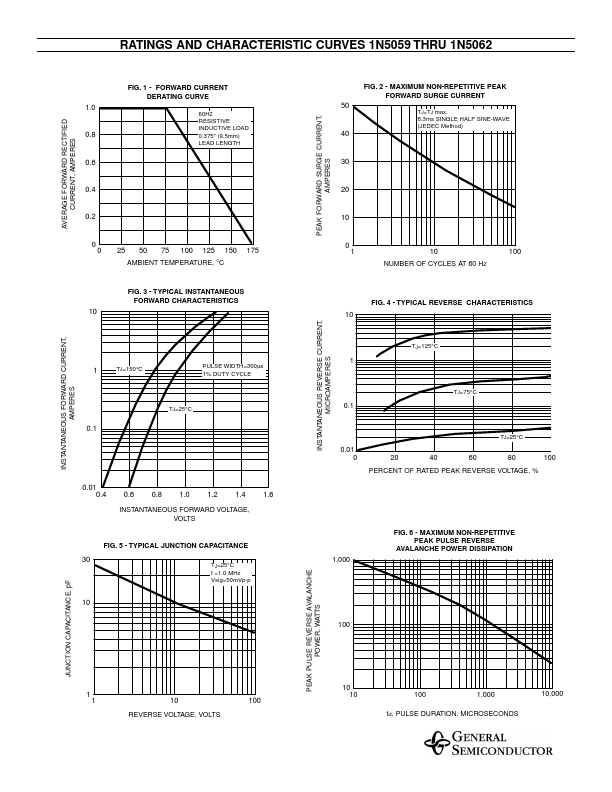

datasheet Preview Page 2

Datasheet Details

Part number
1N5061, 1N5059
Manufacturer
General Semiconductor
File Size
46.92 KB
Datasheet
1N5059-GeneralSemiconductor.pdf
Description
GLASS PASSIVATED JUNCTION RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N5061, 1N5059.
Please refer to the document for exact specifications by model.
