1N5059 - GLASS PASSIVATED JUNCTION RECTIFIER

1N5059 Description

1N5059 THRU 1N5062 GLASS PASSIVATED JUNCTION RECTIFIER Reverse Voltage - 200 to 800 Volts Forward Current - 1.0 Ampere D * DO-204AP TENTE 0.034 .

1N5059 Features

* High temperature metallurgically bonded construction
* 1.0 Ampere operation at TA=75°C with no thermal runaway
* Typical IR less than 0.1µA
* Hermetically sealed package
* Glass passivated cavity-free junction
* Capable of meeting environmental stand

📥 Download Datasheet

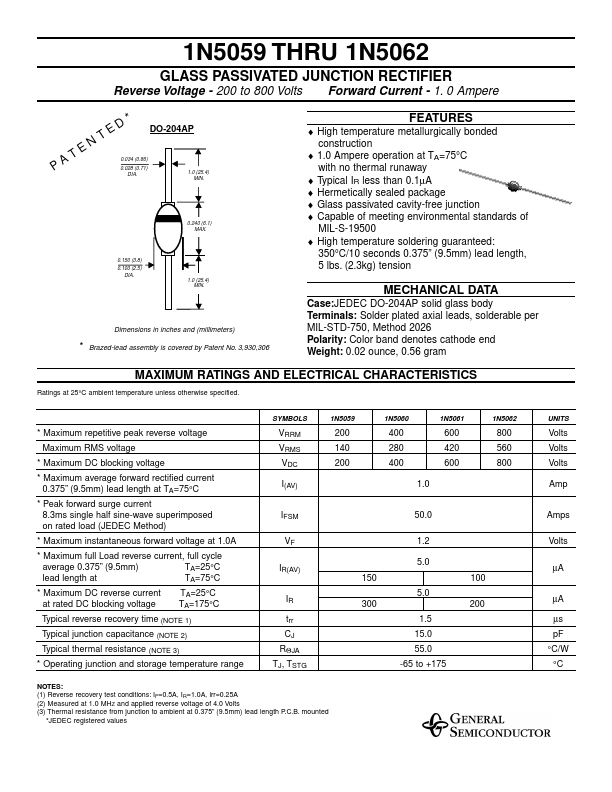

Preview of 1N5059 PDF

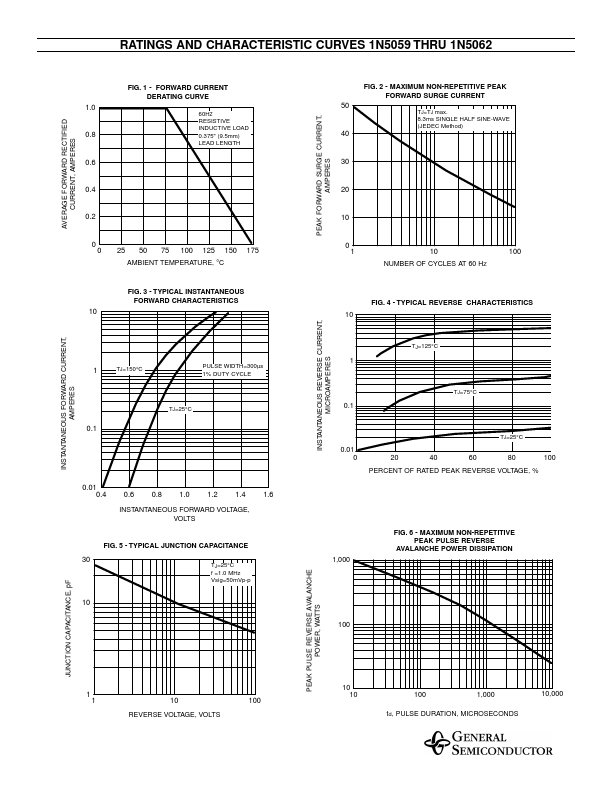

datasheet Preview Page 2

Datasheet Details

Part number
1N5059
Manufacturer
General Semiconductor
File Size
46.92 KB
Datasheet
1N5059-GeneralSemiconductor.pdf
Description
GLASS PASSIVATED JUNCTION RECTIFIER
