1N50 - N-CHANNEL POWER MOSFET

Datasheet Summary

Description

The UTC 1N50 is a N-channel mode power MOSFET using UTC’s advanced technology to provide customers with planar stripe and DMOS technology.

This technology allows a minimum on-state resistance and superior switching performance.

Features

  • RDS(ON)=6.0Ω @ VGS=10V.
  • High Switching Speed.
  • 100% Avalanche Tested Power MOSFET 1 TO-220 1 TO-220F1 1 TO-92.
  • SYMBOL.

📥 Download Datasheet

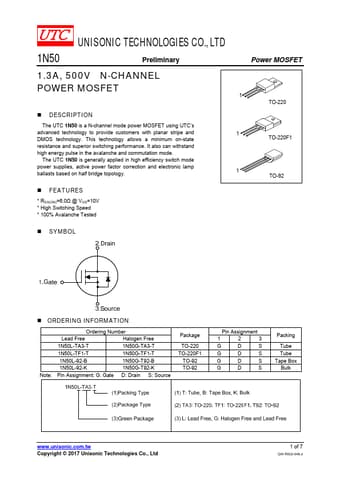

Datasheet preview – 1N50

Datasheet Details

Part number 1N50
Manufacturer Unisonic Technologies
File Size 220.45 KB
Description N-CHANNEL POWER MOSFET
Datasheet download datasheet 1N50 Datasheet
